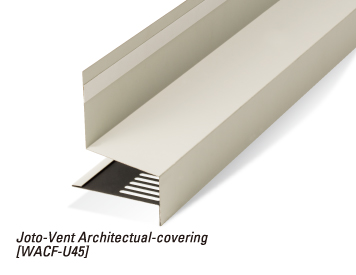

1 x 6 Architectural-covering

The 1 x 6 Joto-Vent Architectural-covering is made by molding a galvanized steel conforming to ASTM A792 (JIS G3322). It functions as the cover for the 1 x 6 Joto-Vent and the seat for the exterior wall sheathing. The attached double-sided tape is used to fix the lower end of the exterior wall paper wrap.

WACF-U45

Product No: WACF-U45
Dimensions: 10'（3030 mm)
Color: White (WT) / Black (BK)
Material: 28-Gauge Galvanized Steel (Colored Galvalume)
Package: 10 pieces / box
Minimum ventilation opening dimension: 1/8 inch

Find more information in The Joto-Vent System® catalog.

Download Catalog

1 x 6 Architectural-covering

1 x 6 Architectural-covering

WACF-U45

Find more information in The Joto-Vent System® catalog.
