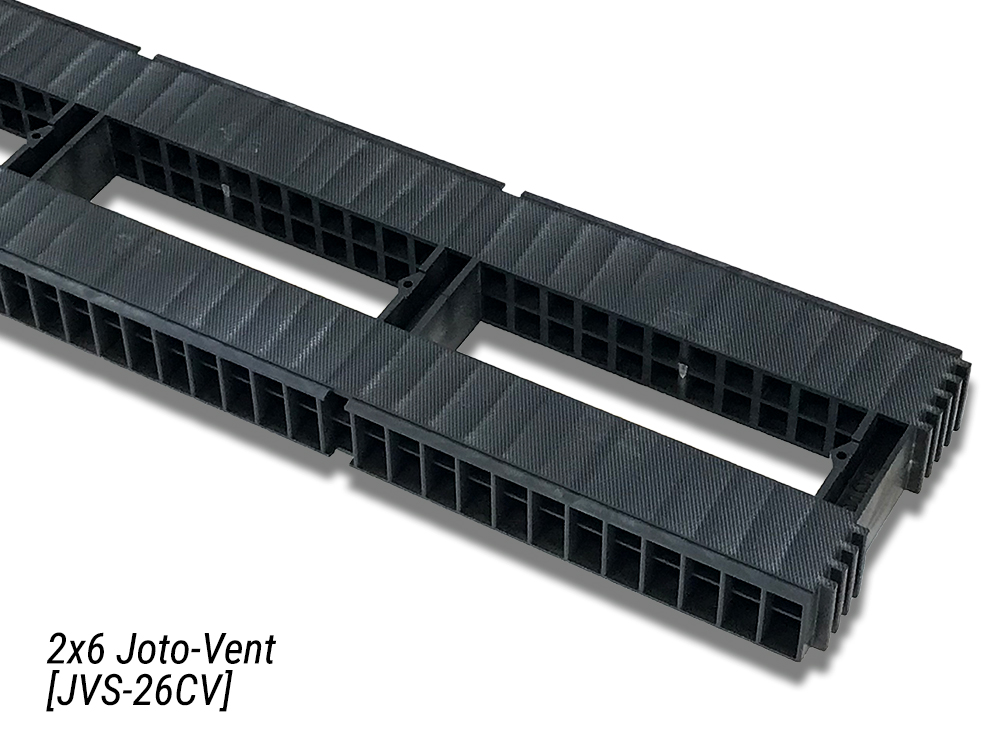

2 x 6 Joto-Vent
2 x 6 Joto-Vent
The Joto-Vent is made by molding a composite material (JC) from calcium carbonate and polyolefin resin. 2x6 Joto-Vent "JVS-26CV" is for 2 x 6 and 2 x 8 stud walls. The net-free ventilation opening area is 33.09 sq.in/pc (11.03 sq.in/lf).
JVS-26CV
Product Information
Product No:
JVS-26CV
Dimensions:
6" × 3' × 1-1/2" (150 × 914.5 × 39 mm)
Sill Plate:
2 x 6, 2 x 8
Material:
JC (Calcium-carbonate, Polyolefin recycled plastic composite)
Color/Pattern:
Net-free Vent area (NFVA):
Net-free Vent area (NFVA):
Black
33.09 sq.in/3ft piece
(11.03 sq.in/lf)
33.09 sq.in/3ft piece
(11.03 sq.in/lf)
Package:
8 pieces / box
Compatible Covering & Insect Prevention Strip
Option 1:
Option 2:
