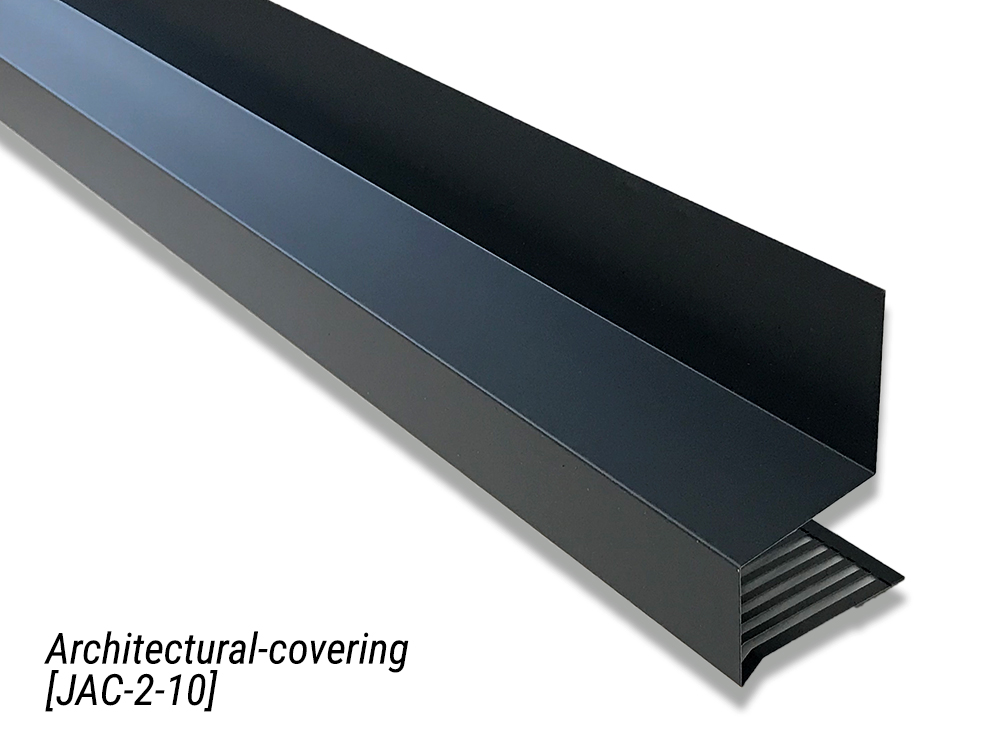

2 x 6 Architectural-covering

2 x 6 Architectural-covering

The 2 x 6 Joto-Vent Architectural-covering is made by molding a galvanized steel conforming to ASTM A792 (JIS G3322). It functions as the cover for the 2 x 6 Joto-Vent and the seat for the exterior wall sheathing. The attached double-sided tape is used to fix the lower end of the exterior wall paper wrap.

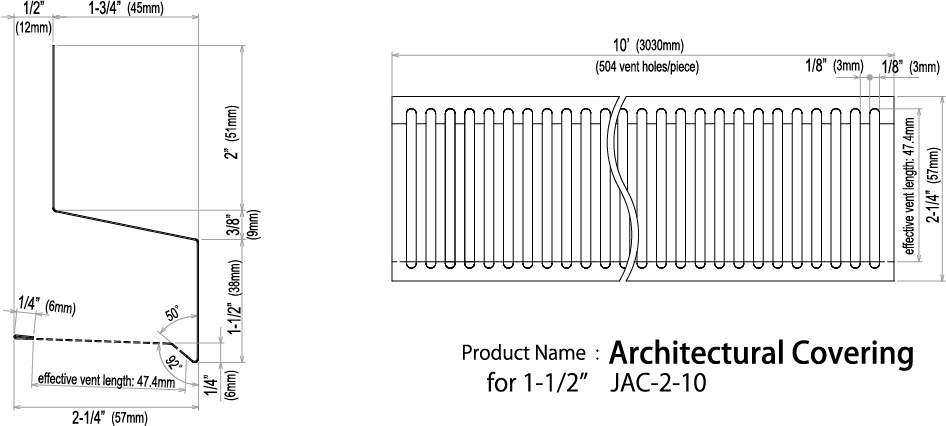

JAC-2-10 Drawing
  • Product No: JAC-2-10
  • Dimensions: 10'(3030 mm)
  • Color: White (WT) / Black (BK)
  • Material: 28-Gauge Galvanized Steel (Colored Galvalume)
  • Package: 10 pieces / box
  • Minimum ventilation opening dimension: 1/8 inch
